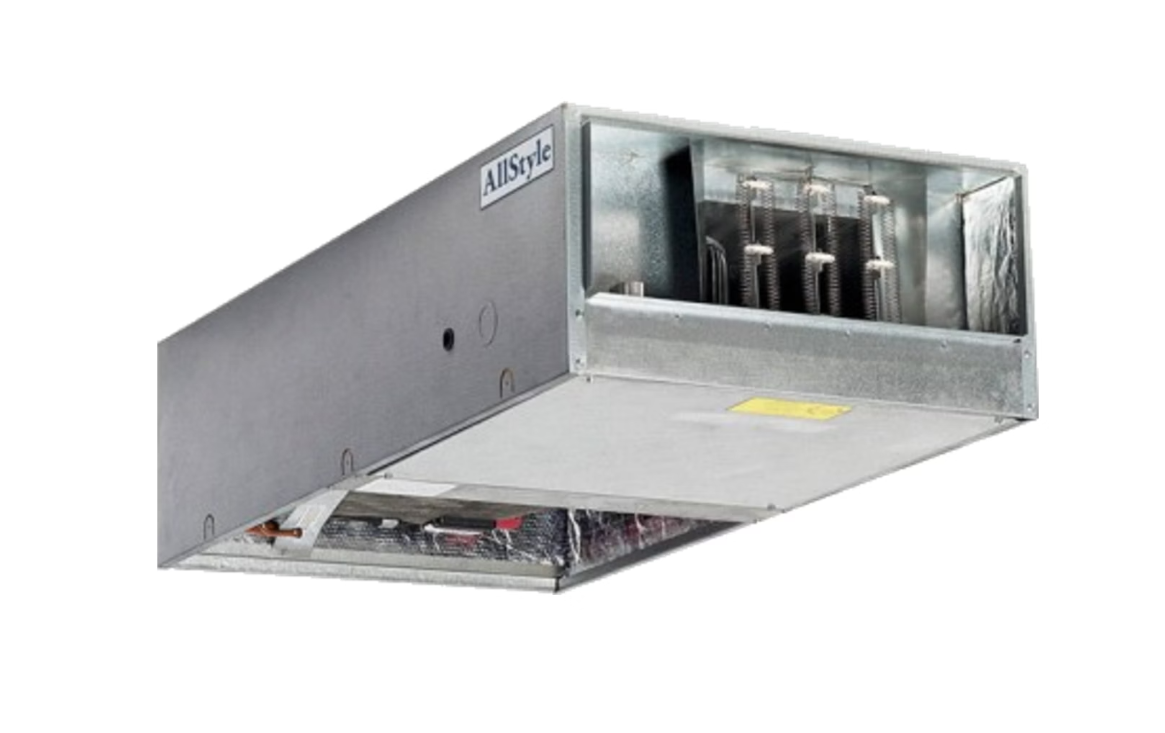

AllStyle AS-ABSKT36-5Q0G+D-VP4-5KW | 3 Ton Vertical Air Handler | R454B | 5 kW Heat | Multi-Position | 208–230V

High-Performance Airflow with Built-In Electric Heat – Contractor Trusted
The AllStyle AS-ABSKT36-5Q0G+D-VP4-5KW is a 3-ton vertical air handler equipped with the VP4 high-static blower package and a 5 kW factory-installed electric heat kit. Designed for flexibility, durability, and easy installation, this unit is ideal for residential and light commercial applications requiring powerful airflow and supplemental electric heat in tight mechanical spaces. R454B

Submittals

General

Installation Guide

Key Features:

Cooling Capacity: 3 Ton (36,000 BTU)

Voltage: 208–230V / Single Phase

Configuration: Vertical (Convertible to Horizontal Left/Right)

Blower Package: VP4 High-Static Blower with multi-speed ECM motor – ideal for longer duct runs and higher static systems

Electric Heat: 5 kW factory-installed heat strip for year-round comfort

Cabinet: Galvanized steel with a durable powder-coated finish

Insulation: Internal thermal and sound insulation for quiet operation

Drain Pan: Sloped polymer drain pan with dual connections for reliable condensate control

TXV Compatible: Can be configured with a thermostatic expansion valve (not included)

Unit Dimensions:

Height: 52" Width: 21" Depth: 24"

Applications:
Perfect for homes, apartments, or commercial spaces using straight cool or heat pump systems. The AS-ABSKT36-5Q0G+D-VP4-5KW offers strong performance, field flexibility, and built-in electric heat — a smart pick for contractors who demand efficiency and reliability on every install.
